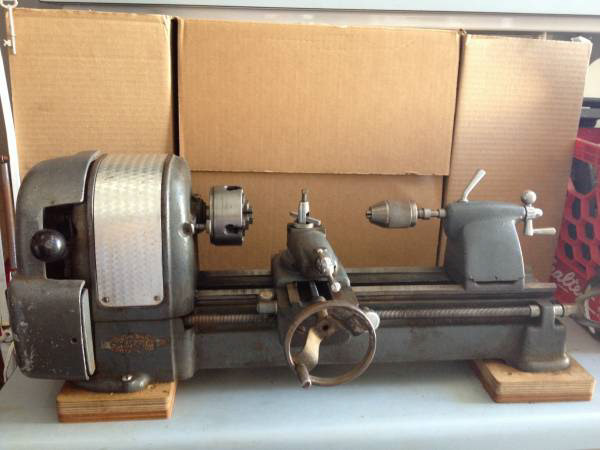

The lathe purchased from eBay.

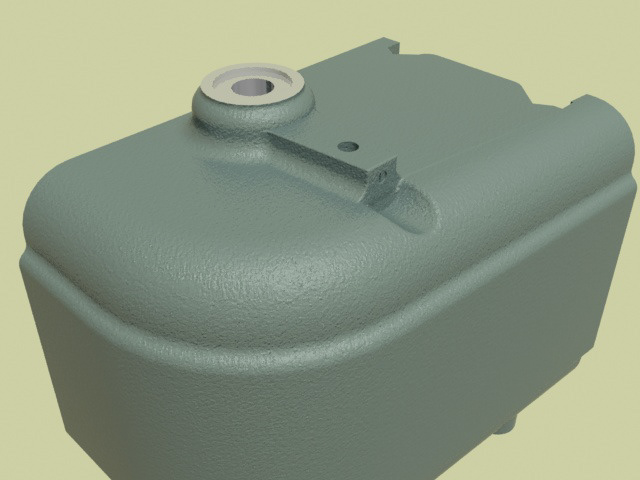

Example rendering of the gear cover.
Planetary gears.
Lathe Animation
For this group project, we took apart a tabletop lathe with over 120 parts, modeled it with Creo 2.0, and animated it with 3D Studio Max to show the assembly and function of the lathe. My focus was on the chuck, planetary gearset, and gearbox.
