As the lead PD engineer on a not-yet-released security camera, I'm responsible for the product satisfying the PRD, the mechanical design, design for manufacturing, testing verification, and mechanical program management of this camera. Below, you will see images of Meraki's currently released cameras.

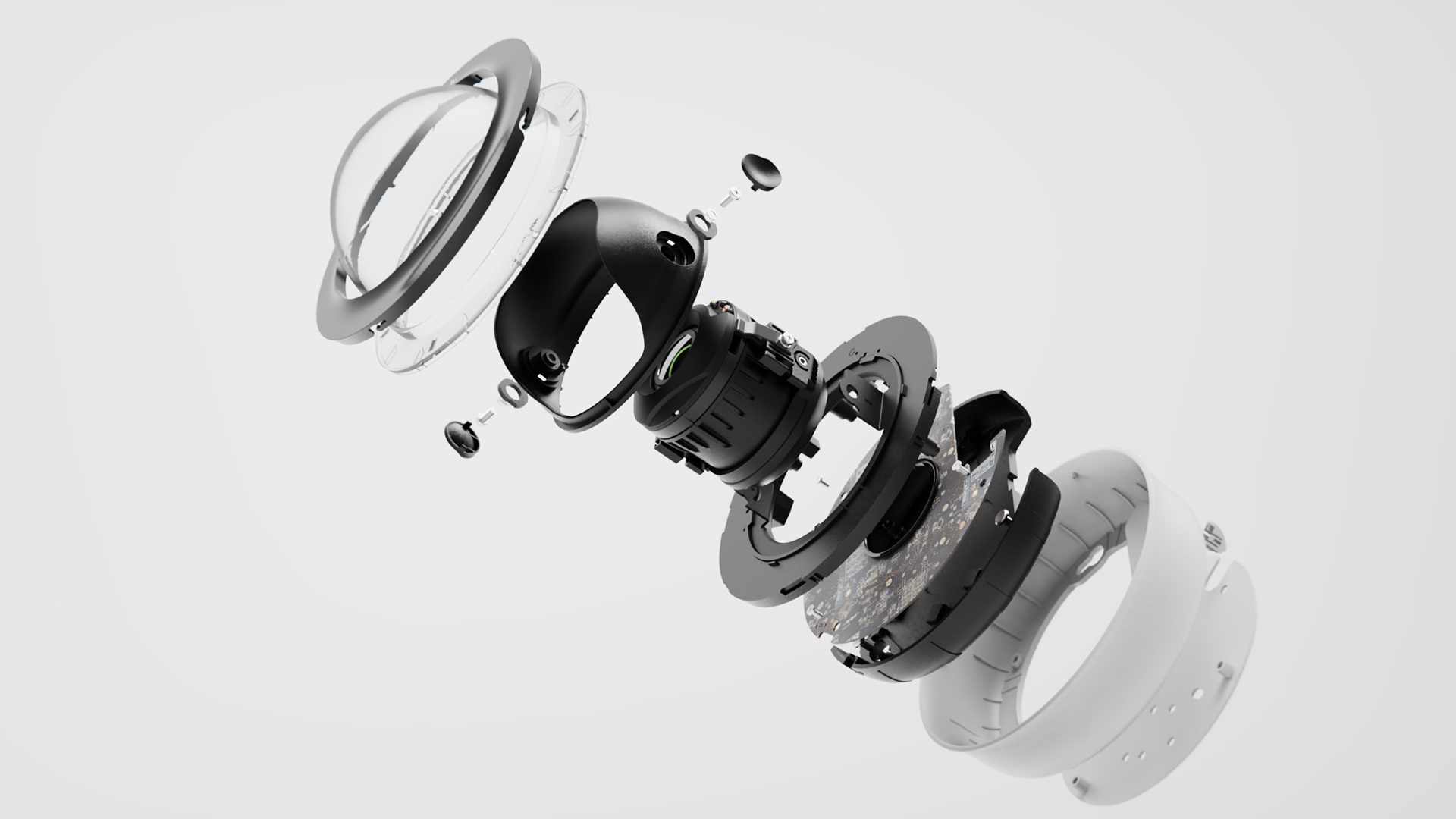

MV72 - Outdoor Security Camera
Accomplishments
-Developed top-down design of ~20 unique mechanical parts and PCBAs, as well as designed in detail the plastic, silicone, die cast, and sheet metal parts
-Designed for visible and infrared light internal reflections
-Designed multiple water seals for IP67
-Designed product for IK10 impact resistance
-Designed cosmetic die cast parts for manufacturability, such as draft, rounds, and gate location
-Reduced temperature of image sensor by 5 C by increasing the conducting surface area and cross-sectional area
-Increased top port microphone performance by increasing gasket interference and aperture size
-Reduced EMI and desense by adding conductive sponges to increase grounding
-Improved weld line on cosmetic black plastic part
-Improved weld line on cosmetic black plastic part
-Iterated silicone lens hood to reduce infrared and visible light reflections
